Minelab Vanquish 560 Pro-Pack
The Minelab Vanquish 560 Pro-Pack is a feature-packed multi-frequency metal detector designed for detectorists who want strong performance in a simple, intuitive setup. Powered by Minelab’s Multi-IQ technology, it scans across multiple frequencies at once to help deliver reliable target identification and confident performance across changing ground conditions.
The Pro-Pack includes both the V12X and V8X coils, giving you the flexibility to cover open ground efficiently or work more precisely in tighter, target-rich areas. With waterproof construction, 30 discrimination segments, five target tones, wireless audio and handgrip vibration, the Vanquish 560 Pro-Pack is a capable all-round package for land, beach and wet ground detecting.
Key Features
- Multi-IQ simultaneous multi-frequency technology
- Beach, Park and Field search modes
- 30 discrimination segments
- Target ID range from -19 to 99
- Four levels of Iron Bias control
- Five target tones
- Bluetooth LE Audio with ML60 wireless earbuds included
- Waterproof to 5 metres with IP68 rating

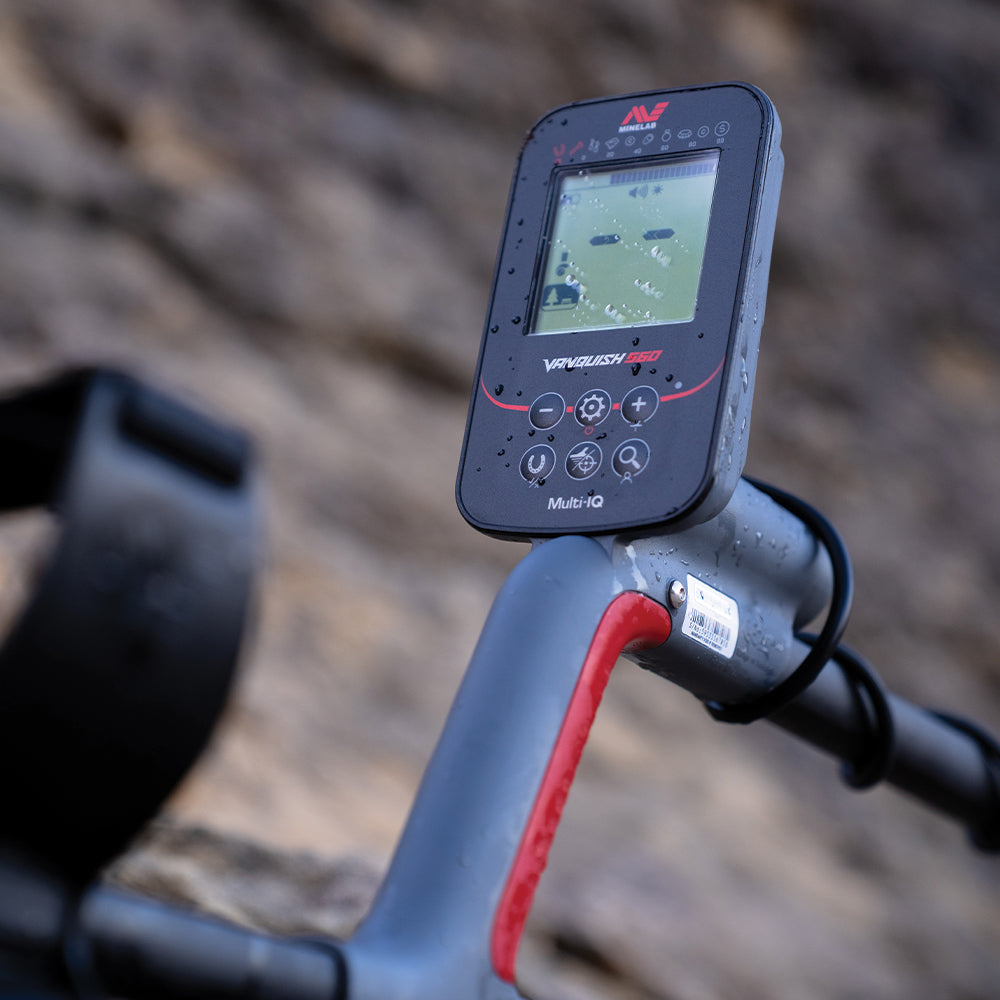

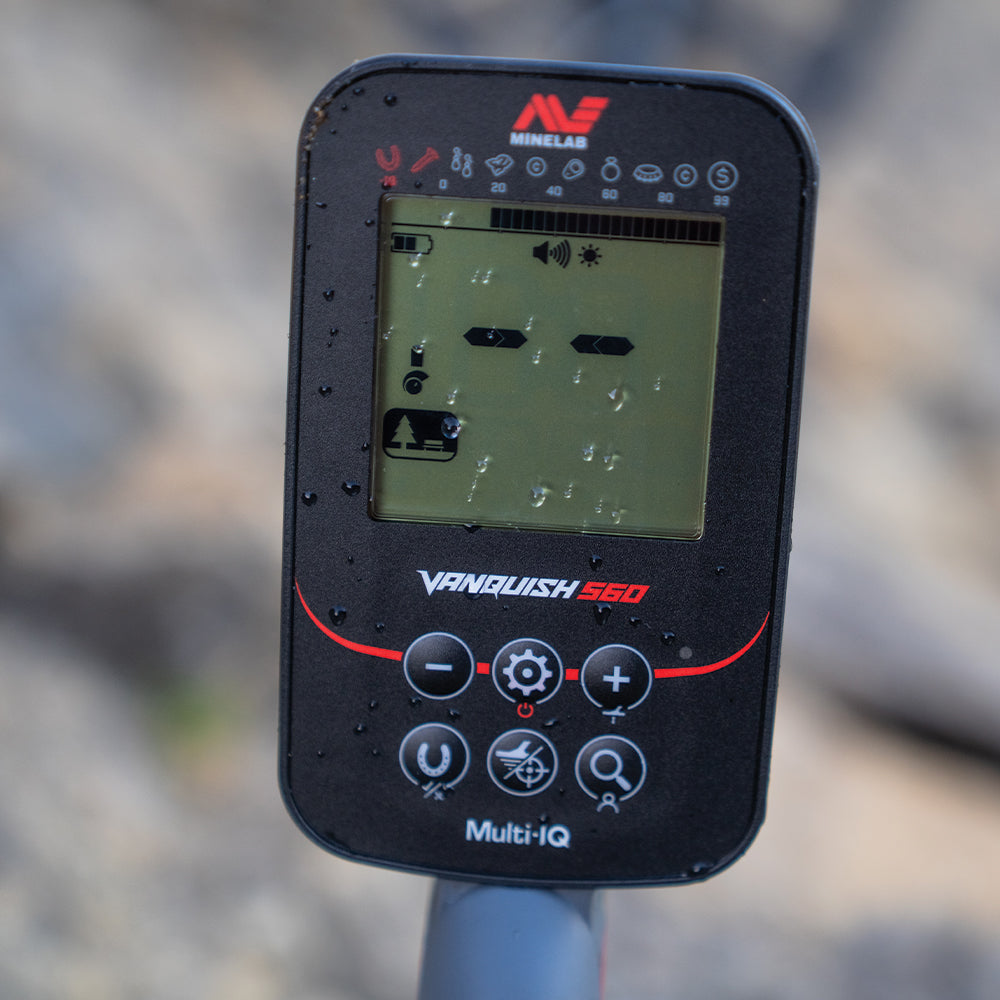

- Backlit monochrome LCD display and keypad backlight
- Built-in flashlight and vibration
- Includes V12X 12" x 9" coil and V8X 8" x 5" coil
- Internal rechargeable lithium-ion battery
Why Choose the Vanquish 560 Pro-Pack?
The Vanquish 560 Pro-Pack is ideal for detectorists who want the benefit of Minelab’s Multi-IQ technology without an overly complicated control system. It offers strong all-terrain capability, useful audio options and enough adjustment to handle a variety of sites.
The two included coils make the Pro-Pack especially versatile. Use the V12X for wider ground coverage across open areas, or switch to the V8X for tighter spaces, stubble, woodland edges and target-rich ground where precision matters.

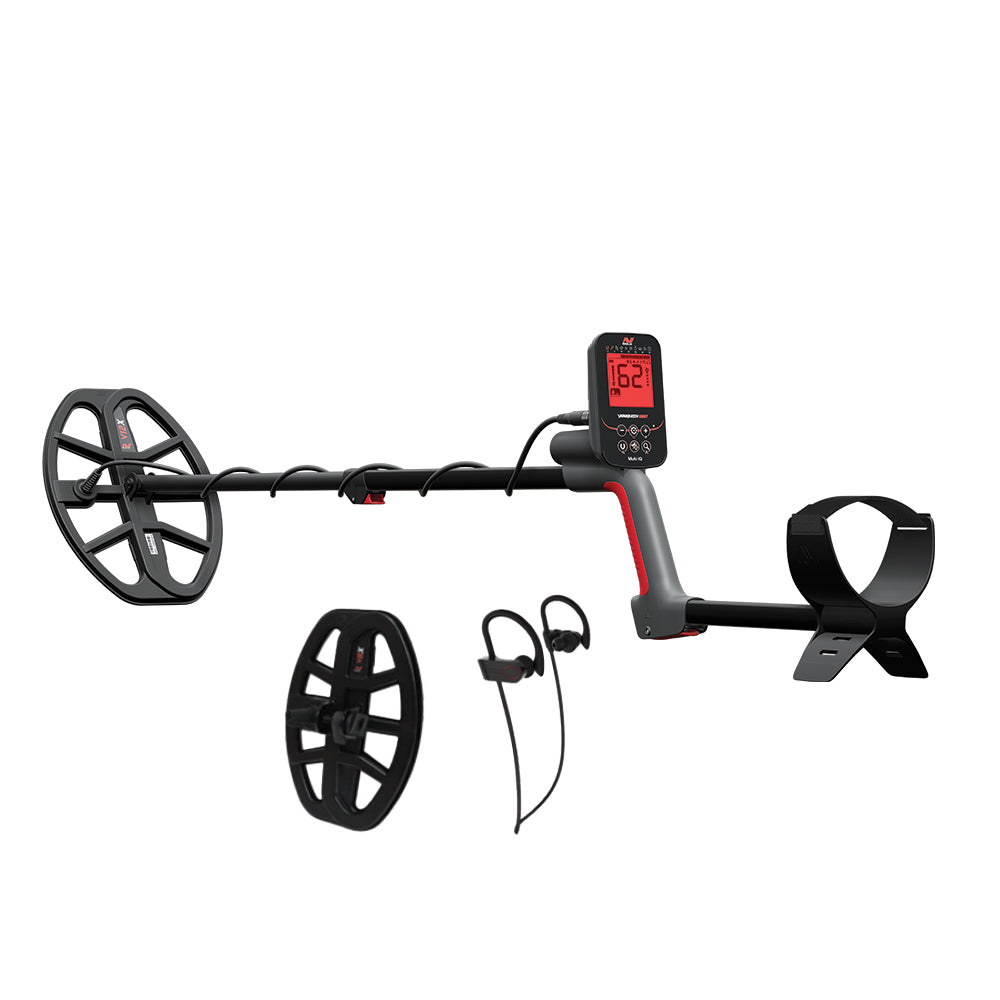

What's Included?
- Minelab Vanquish 560 Pro-Pack metal detector
- V12X 12" x 9" Double-D elliptical coil
- V8X 8" x 5" Double-D elliptical coil
- ML60 Bluetooth LE wireless earbuds
- Internal rechargeable lithium-ion battery
Specification Sheet
| Search Modes |
Beach, Park, Field |
| Technology |
Multi-IQ simultaneous multi-frequency |
| User Profile |
Yes |
| Custom User Search Profile |
Yes |
| Pinpoint Mode |
Yes |
| Sensitivity |
10 levels |
| Noise Cancel |
Auto |
| Discrimination Segments |
30 segments |
| Target ID |
Ferrous -19 to 0 / Non-ferrous 1 to 99 |
| Depth Indicator |
5 levels |
| Iron Bias |
4 levels |
| Target Tones |
5 tones |
| Volume Control |
10 levels |
| Ferrous Volume |
10 levels |
| Wireless Audio |
Bluetooth LE Audio, LC3 codec |
| Audio Output |
Built-in loudspeaker, wired 3.5mm headphones, Bluetooth LE Audio |
| Included Headphones |
ML60 wireless earbuds |
| Supplied Coils |
V12X 12" x 9" Double-D elliptical coil
V8X 8" x 5" Double-D elliptical coil |
| Length |
Extended: 142cm / 56"
Collapsed: 79cm / 31" |
| Weight |
1.26kg / 2.6lbs |
| Display |
Monochrome LCD |
| Display Backlight |
Yes |
| Keypad Backlight |
Yes |
| Flashlight |
Yes |
| Vibration |
Yes |
| Battery |
Internal rechargeable lithium-ion battery |
| Waterproof Rating |
IP68, waterproof to 5m / 16ft |
| Operating Temperature |
-10°C to +40°C / +14°F to +104°F |
| Storage Temperature |
-20°C to +70°C / -4°F to +158°F |
| Key Technologies |
Multi-IQ, Bluetooth LE Audio |
| Warranty |
3 years on control box and coil |
FAQs
Is the Minelab Vanquish 560 Pro-Pack waterproof?
Yes, it is waterproof to 5 metres with an IP68 rating.
What coils are included with the Vanquish 560 Pro-Pack?
The Pro-Pack includes the V12X 12" x 9" Double-D elliptical coil and the V8X 8" x 5" Double-D elliptical coil.
Are wireless headphones included?
Yes, the Vanquish 560 Pro-Pack includes ML60 Bluetooth LE wireless earbuds.
Is the Vanquish 560 Pro-Pack suitable for beach detecting?
Yes, it includes Beach mode and is waterproof, making it suitable for beach and wet ground detecting.
Who is the Vanquish 560 Pro-Pack best suited to?
It is ideal for detectorists who want Multi-IQ performance, two coil options and simple controls in a complete ready-to-go package.
