Minelab Manticore

Name: Minelab Manticore
Brand: Minelab
SKU: 3228-0200
Price: 1499.0 GBP
Availability: OutOfStock
Rating: 5.0 (4 reviews)

Save £300.00

MinelabSKU: 3228-0200

Price:

£1,499.00 £1,799.00

Quantity:

LP Price Monitoring

2 Nov 2026

We monitor prices daily across leading UK metal detecting retailers.

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Share this product

Try it in the field before you buy

Start a home trial

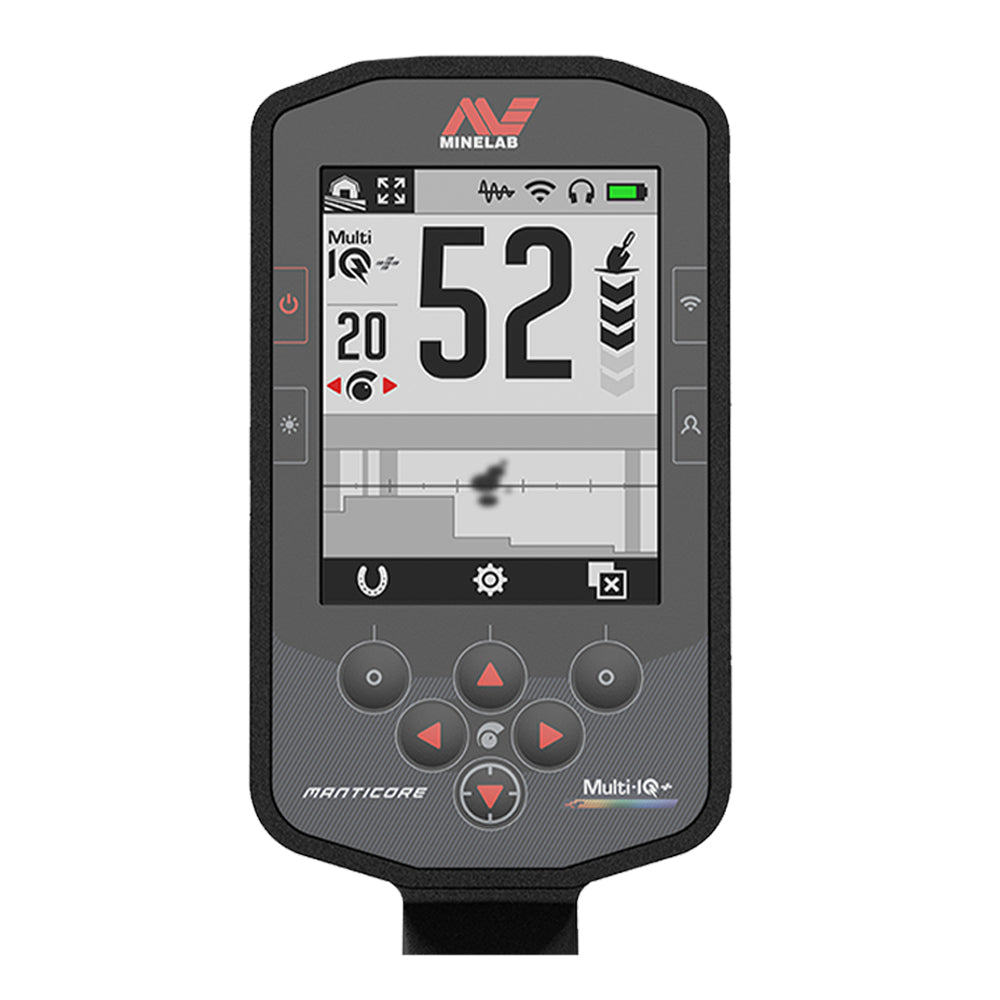

MANTICORE
With Multi-IQ+ is the most powerful, fastest, and precise metal detector in Minelab’s history. The heart of MANTICORE is its super-charged Simultaneous Multi-Frequency (MULTI-IQ+) engine. This feat of innovation generates an incredible 50% power increase over the best-selling detector series of all time: EQUINOX. When combined with advanced 2D Target Identification (ID) and rich audio options, the detectorist has every bit of vital information arriving at their eyes and ears. MANTICORE is an unrivalled detecting experience that pushes the boundaries of detecting to deliver more power, more depth, and more finds.

MULTI-IQ+
Multi-IQ+ is the newest generation Simultaneous Multi-Frequency engine from Minelab, building on the success of the original Multi-IQ. Multi-IQ+ transmits more power through the coil at a wider range of operating frequencies, to light up more targets in the ground. It has completely revamped signal processing providing enhanced discrimination, greater Target ID resolution, improved target separation, and gives you a greater ability to tune discrimination and audio to suit your detecting conditions.

FAST RESPONSE
Find desired targets amongst ferrous trash like no other detector on the market with MANTICORE’s exceptional target separation performance.

ENHANCED DISCRIMINATION
Exceeding expectations with every swing, MANTICORE delivers improved Target ID stability and close target separation. With customisable Ferrous Limits you have unprecedented control to accept ferrous coins, reject complex ferrous targets, or dial in maximum target unmasking in iron.

Key Features

10 customisable Search Modes including All-Terrain optimised for inland detecting; Beach optimised for sand, surf and seawater zones; and Goldfield optimised for detecting gold nuggets.

Take control of audio with MANTICORE. Hear target information the way you like it via superior audio controls including customisable target tones, suppression of Electromagnetic Interference (EMI) chatter and Continuous Pitch (VCO) audio with ferrous tones and genuine threshold detection tone

No terrain is off limits with MANTICORE — dive up to 5 m (16 ft) for underwater exploration (IP68 Rating) to find hidden targets others can’t reach.

Improved EMI rejection means it’s possible to operate using higher sensitivity whilst isolating target information — even in the most challenging environmental conditions.

The daylight may have ended, but that doesn’t mean your hunt has to. With Control Pod Flashlight, Display Backlight with Auto Adjust, and Backlit Keypad, plus Handgrip Vibration, you can power on long after the sun has gone.
Light & compact, only 1.3 kg / 2.9 lb with an extended length of 1440 mm / 56.7 and a collapsible length of 630 mm / 24.8 inch.
Standard Coil (M11)11-inch round Double-D coil with skidplate (waterproof to 5 m / 16 ft)

Audio Output Speaker | 3.5 mm (1/8") headphones | Wireless low latency headphones Headphones (Included)

Minelab ML-105 wireless low latency headphones (non waterproof)

Feature	Specification
Detect Modes	(Customisable) All-Terrain (5), Beach (4), Goldfield (1)
Operating Frequencies	Multi-IQ+, 5 kHz, 10 kHz, 15 kHz, 20 kHz, 40 kHz
Noise Cancel	Auto, Continuous Auto, Manual (-9 to +9)
Ground Balance	Auto, Manual, Tracking
Sensitivity	1 to 35
Target Identification	Conductive: 0–99 with ferrous indication
2D ID Map	Two-Dimensional ID Map System with Target Trace
Target Tones	1, 2, 5 – Tone \| 1, 2, 5 – Region All Tones
Target Volume	0 to 25
Target Pitch	1 to 50
Ferrous Volume	0 to 25
Ferrous Pitch	1 to 50
Audio Themes	Normal, Enhanced, Continuous Pitch
Volume Profiles	Simple, Medium, Rich
Threshold Level	0 to 25
Threshold Pitch	1 to 50
Recovery Speed	0 to 8
Ferrous Limits	Upper: 0 to 14 \| Lower: 0 to 9
Ferrous Limits Custom	1 to 4
Depth Indicator	5 levels
Shaft System	3-piece highly collapsible carbon-fibre
Weight	1.3 kg / 2.9 lb
Display	Colour LCD
Display Backlight	Manual (1 to 10), Auto Adjust
Keypad Backlight	On, Off
Flashlight	Low, Medium, High, Off
Handgrip Vibration	On, Off
Battery	Internal rechargeable Lithium-ion battery
Battery Runtime	Approx. 9 hours
Battery Charge Time	Approx. 7 hours
Waterproof	Waterproof to 5 m / 16 ft, IP68

- Included Accessories
USB Charging Cable, 5x Screen Protectors, 3.5 mm Headphone Audio Cable, Headphone Case

- Software Upgradable
Via USB connection (Windows or Mac OS compatible)
