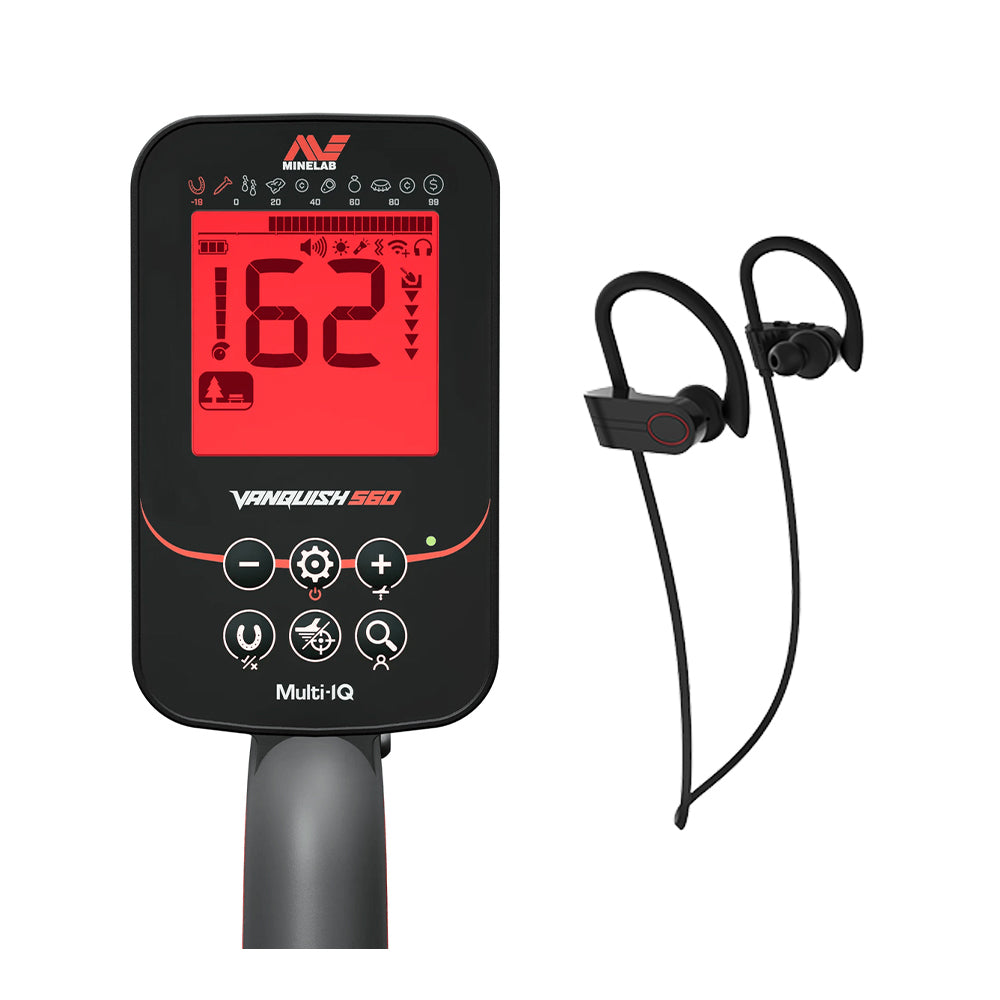

Minelab Vanquish 560
The Minelab Vanquish 560 is a powerful multi-frequency metal detector designed for detectorists who want extra control, sharp target response and simple day-to-day operation. Powered by Minelab’s Multi-IQ technology, it detects across multiple frequencies at once to help deliver reliable target identification and confident performance across changing ground conditions.
With Beach, Park and Field modes, 30 discrimination segments, five target tones, four levels of Iron Bias control and waterproof construction to 5 metres, the Vanquish 560 is a strong all-round choice for land, beach and wet ground detecting.
Key Features
- Multi-IQ simultaneous multi-frequency technology
- Beach, Park and Field search modes
- 30 discrimination segments
- Target ID range from -19 to 99
- Four levels of Iron Bias control
- Five target tones
- Bluetooth LE Audio compatibility
- Waterproof to 5 metres with IP68 rating
- Backlit monochrome LCD display and keypad backlight
- Built-in flashlight and vibration
- Includes V12X 12" x 9" Double-D elliptical coil
- Includes Minelab wired headphones
- Internal rechargeable lithium-ion battery
Why Choose the Vanquish 560?
The Vanquish 560 gives detectorists the benefit of Minelab’s Multi-IQ technology in a simple and practical package. It is ideal for those who want strong all-terrain capability without a complicated menu system.
The V12X coil offers good ground coverage for open areas, while the higher level of audio and discrimination control helps you make clearer decisions over different types of ground.
What's Included?
- Minelab Vanquish 560 metal detector
- V12X 12" x 9" Double-D elliptical coil
- Minelab wired headphones
- Internal rechargeable lithium-ion battery
- Free ML60 Earbuds
Specification Sheet
| Search Modes |
Beach, Park, Field |
| Technology |
Multi-IQ simultaneous multi-frequency |
| User Profile |
Yes |
| Sensitivity |
10 levels |
| Noise Cancel |
Auto |
| Discrimination Segments |
30 segments |
| Target ID |
Ferrous -19 to 0 / Non-ferrous 1 to 99 |
| Depth Indicator |
5 levels |
| Iron Bias |
4 levels |
| Target Tones |
5 tones |
| Volume Control |
10 levels |
| Ferrous Volume |
10 levels |
| Wireless Audio |
Bluetooth LE Audio, LC3 codec |
| Audio Output |
Built-in loudspeaker, wired 3.5mm headphones, Bluetooth LE Audio |
| Supplied Coil |
V12X 12" x 9" Double-D elliptical coil |
| Length |
Extended: 142cm / 56"
Collapsed: 79cm / 31" |
| Weight |
1.26kg / 2.6lbs |
| Display |
Monochrome LCD |
| Display Backlight |
Yes |
| Keypad Backlight |
Yes |
| Flashlight |
Yes |
| Vibration |
Yes |
| Battery |
Internal rechargeable lithium-ion battery |
| Waterproof Rating |
IP68, waterproof to 5m / 16ft |
| Operating Temperature |
-10°C to +40°C / +14°F to +104°F |
| Storage Temperature |
-20°C to +70°C / -4°F to +158°F |
| Key Technologies |
Multi-IQ, Bluetooth LE Audio |
| Warranty |
3 years on control box and coil |
FAQs
Is the Minelab Vanquish 560 waterproof?
Yes, it is waterproof to 5 metres with an IP68 rating.
What coil is included with the Vanquish 560?
The Vanquish 560 includes the V12X 12" x 9" Double-D elliptical coil.
Are headphones included?
Yes, this package includes Minelab wired headphones. Wireless headphones are not included.
Is the Vanquish 560 suitable for beach detecting?
Yes, it includes Beach mode and is waterproof, making it suitable for beach and wet ground detecting.
What is the difference between the Vanquish 560 and 560 Pro-Pack?
The Vanquish 560 includes the V12X coil and wired headphones. The 560 Pro-Pack adds the smaller V8X coil and ML60 wireless earbuds.
